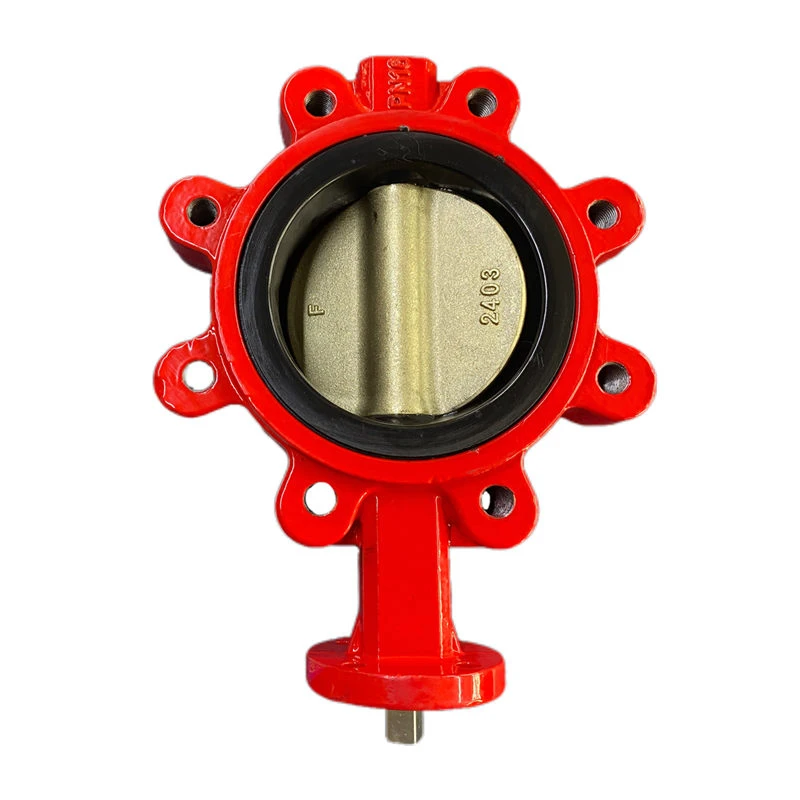

तितली वाल्व को लूग और टैप किया गया

नाममात्र व्यास dn

आकार (मिमी)

वजन (किग्रा)

A

B

C

D

L

H

D₁

N-Ø

K

E

n₁-Ø₁

Ø₂

G

(मिमी)

(इंच)

50

2"

161

80

42

52.9

32

88.38

125

4-M16

77

57

4-7

12.6

118

3.8

65

2.5"

175

89

44.7

64.5

32

102.54

145

4-M16

77

57

4-7

12.6

137

4.2

80

3"

181

95

45.2

78.8

32

61.23

160

8-M16

77

57

4-7

12.6

178

4.7

100

4"

200

114

52.1

104

32

68.88

180

8-M16

92

70

4-10.5

15.77

206

9.0

125

5"

213

127

54.4

123.3

32

80.36

210

8-M16

92

70

4-10.5

18.92

238

10.9

150

6"

226

139

55.8

155.6

32

91.84

240

8-M20

92

70

4-10.5

18.92

266

14.2

200

8"

260

175

60.6

202.5

45

112.89/76.35

295

8-M20/12-M24

115

88.9

4-14.5

22.1

329

18.2

250

10"

292

203

65.6

250.5

45

90.59/91.88

350/355

12-M20/12-M24

115

88.9

4-14.3

28.45

393

26.8

300

12"

337

242

76.9

301.6

45

103.52/106.12

400/410

12-M20/12-M24

140

107.95

4-14.3

31.6

462

40

350

14"

368

267

76.5

333.3

45

89.74/91.69

460/470

16-M20/16-M24

140

107.95

4-14.3

31.6

515

56

400

16"

400

309

86.5

389.6

51.2/72

100.48/102.42

515/525

16-M24/16-M27

197

158.75

4-20.6

33.15

579

96

450

18"

422

328

105.6

440.51

51.2/72

88.38/91.51

565/585

20-M24/20-M27

197

158.75

4-20.6

38

627

122

500

20"

480

361

131.8

491.6

64.2/82

96.99/101.68

620/650

20-M24/20-M30

197

156.25

4-20.6

41.15

696

202

600

24"

562

459

152

592.5

70.2/82

113.42/120.46

725/770

20-M27/20-M33

276

215.9

4-22.2

50.65

821

270
